Product Focus

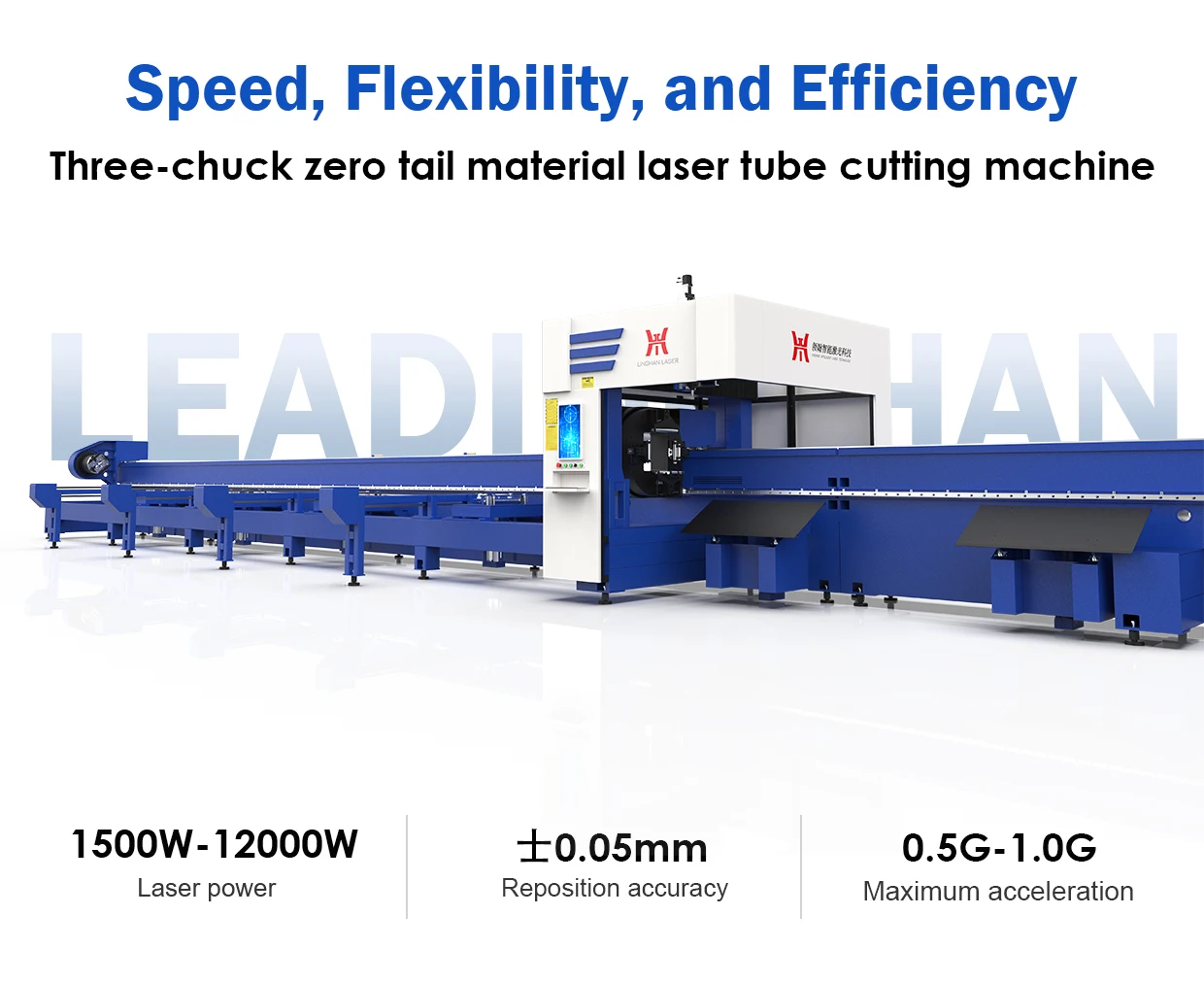

Heavy-Duty Three-Chuck Fiber Laser Tube Cutting Machine
Laser Power Range: 1.5kW – 12kW
Designed for Ultra-Heavy Tubes and Profiles
This cutting-edge fiber laser tube cutting machine is engineered specifically for ultra-heavy-duty pipes and structural profiles. With its three-chuck clamping system, high-power laser range, and intelligent automation features, it offers superior performance for large-scale industrial applications. Capable of cutting pipes up to 600mm in diameter, bevels up to 45° (optional), and tube lengths up to 12,000mm with a maximum load capacity of 1,500kg, it sets a new benchmark in heavy-duty tube processing.
Machine Highlights
-
Reinforced Machine Bed with Side-Connected Design
The machine bed is side-connected to enhance structural rigidity, offering greater shock resistance and higher load capacity. This design minimizes deformation during high-speed cutting, ensuring long-term accuracy and durability even under demanding workloads. -
Three-Chuck Reverse Cutting System for Zero Tailing
The innovative three-chuck system enables reverse cutting, effectively eliminating tailing waste and achieving maximum material utilization. This helps significantly reduce raw material costs and ensures precision cutting across the full length of the pipe. -
Dual Cutting Stations with Servo Support System
The servo-powered intelligent support system provides high load-bearing support for long tubes, maintaining cutting precision and stability throughout the entire process. The dual cutting stations ensure continuous production, improving throughput and overall efficiency. -
Adjustable Pneumatic Clamping System
Each end is equipped with a three-jaw pneumatic chuck, designed with adjustable clamping pressure to handle various pipe diameters and wall thicknesses. The rear chuck includes an air-blowing mechanism to remove debris from the tube walls during cutting, reducing contamination and improving edge quality. -
Smart Cutting and User-Centered Design
The machine is designed with operator-friendliness in mind, featuring automated loading/unloading platforms to cut labor costs and enhance workflow. The slanted gear transmission system reduces noise and vibration caused by gear engagement, providing quiet operation and improved cutting stability. -
High-Capacity Processing Capability
-
Pipe Diameter: Up to Φ600mm
-
Bevel Cutting: Up to 45° (Optional)
-
Tube Length: Up to 12,000mm
-
Single Pipe Weight: Up to 1,500kg
-
Application Fields
This machine is ideal for industries such as:
-
Heavy steel structure manufacturing
-
Shipbuilding and marine engineering
-
Oil and gas pipeline fabrication
-
Construction and architecture
-
Industrial machinery and vehicle frames
Comprehensive Fiber Laser Tube Cutting Solution
Covering a full spectrum of laser power from 1.5kW to 12kW, this machine handles tube lengths up to 7,500mm with high accuracy and efficiency. It is engineered for the versatile processing of round, oval, racetrack-shaped, angle steel, channel steel, I-beams, and other irregular profiles. With its intelligent automation features, it significantly reduces manual labor and maximizes productivity.
Machine Features
- Dual Pneumatic Chuck Clamping System:
- The front and rear chucks provide secure and stable clamping.
- The rear chuck includes an air-blowing device to eliminate debris during cutting.
- Adjustable clamping pressure accommodates different load-bearing requirements, preventing deformation of thin tubes while ensuring firm grip of thicker pipes.
- Automated Loading & Unloading System:
- Seamlessly integrates with the cutting process to reduce labor costs and operator workload.
- Enhances operational efficiency and ensures continuous processing.
- User-Friendly Control with Wireless Remote:
- Supports cutting, drilling, positioning, calibration, and emergency stop.
- The wireless handle offers flexible control over clamping pressure and machine functions, making automated production highly practical and intuitive.
After-Sales Service
- Three-Year Warranty
Comprehensive technical support ensures peace of mind and long-term reliability. - Extended Online Support
Technical support is available Monday to Sunday, from 9 AM to 10 PM, covering all time zones. Experienced engineers provide lifetime online assistance, eliminating concerns about time differences. - Local Service Available
On-site support can be arranged where needed, ensuring fast response and effective problem resolution.
Packaging & Delivery
We follow international packaging standards to ensure safe delivery:
- Full protective film wrapping for the entire machine.
- Anti-collision edge protection to prevent damage during transit.
- Non-fumigation plywood cases and iron-reinforced pallets for secure transportation.
Factory Overview
Our company is a high-tech enterprise specializing in the R&D, manufacturing, and sales of intelligent laser systems. We are committed to delivering global customers cutting-edge laser solutions for applications in precision instruments, sheet metal fabrication, automotive parts, and kitchen & bathroom hardware.
Located in Jiangsu, China, our factory covers over 20,000 square meters, equipped with standardized smart manufacturing facilities. We implement efficient and regulated personnel and production management systems, ensuring organized and high-quality production. Adhering to the philosophy of “Technological Innovation, Lean Production, Research Excellence, and Integrity-Driven Business”, we continuously seek talented individuals to join us in our mission to lead the intelligent laser equipment industry.
Frequently Asked Questions
Q: Can we send you our tube or sheet samples to test the machine’s cutting performance?
A: Absolutely. We welcome customers to send their materials for testing. Please send at least three pieces per size for accurate evaluation.
Q: How do we install and operate the machine?
A: The machine is fully installed and tested before shipment. For minor assembly required on-site, we provide comprehensive training videos and user manuals. Over 95% of our customers are able to get started without on-site installation services.
Q: What should we do if the machine encounters a problem?
A: Please contact us immediately instead of attempting self-repair. Our technical team will respond within 24 hours to provide a professional solution.
